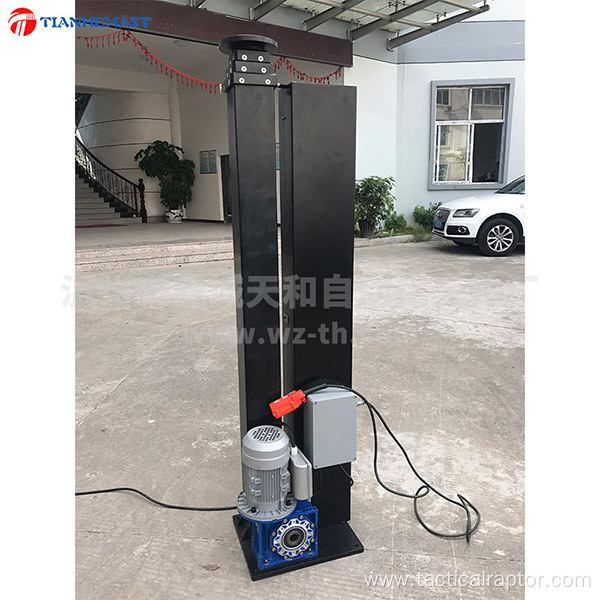

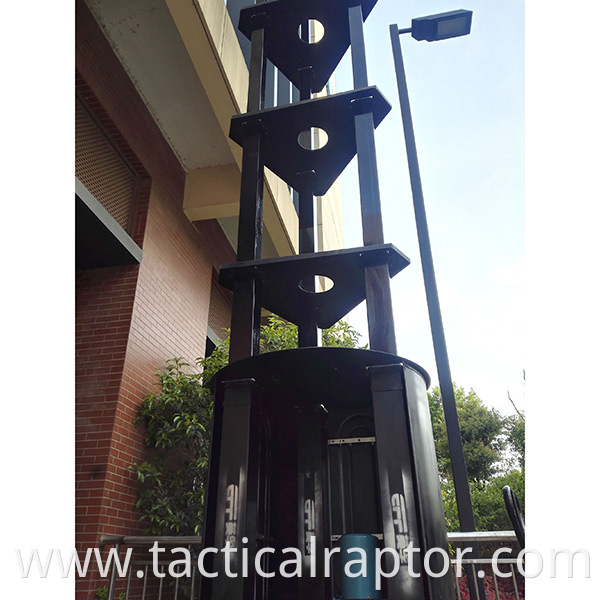

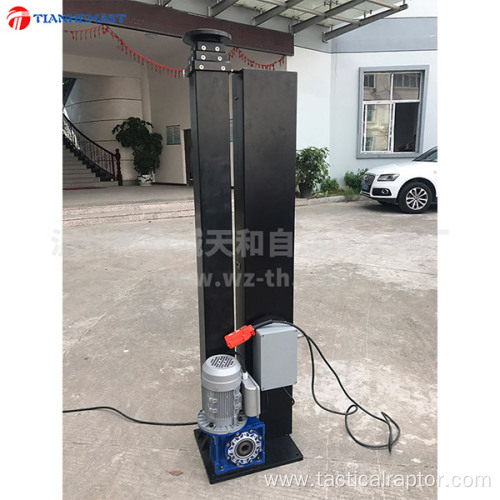

Rigid Chain Electric Lifting Mast
It can be used in fire fighting, emergency communication, emergency lighting, radar antenna and other places that need to be lifted, and can be installed in a variety of ways, such as fixed platforms, engineering vehicles, ships, etc. It is chara
cterized by large load, long travel, good stability, high repetitive positioning accuracy, high hover self-locking, low noise and so on. It can also be made into a combined mast lifting tower by the linkage of multiple groups of rigid chain lifting masts.
Performance parameters of rigid chain lifting mast Initial height(m) 1670mm Lift height(m) 4720mm Vertical load（KG） ≤120kg Maximum Outer Diameter of Pipe（mm） £124 Node number 4 Chain library height 1540mm Layer Number of Chain library The 2 level Operation mode Electric working voltage 220V Motor power 750W Lifting speed（mm/min) 2400mm/min plate size 330mm*400mm Installation Dimensions of Bottom Plate 290mm*360mm Size of bottom mounting hole 4-Ø13 Top mounting dimensions Customize Wind resistance ≤Level 8
characteristic:
1. Heavy load
2. Long travel, good stability and low noise
3. High accuracy of repeated positioning
4. High hover self-locking
5. Multiple groups of rigid chain lifting mast groups are linked to form a combined mast lifting tower.
