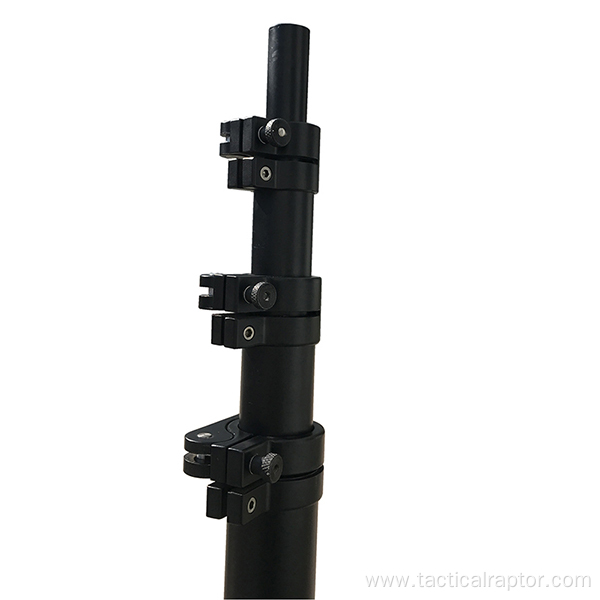

Manual lifting rod is a light lifting rod for manual lifting. It has the characteristics of light weight, convenient carrying and simple operation. It can be used for light load lifting operation such as photography, small lighting lamps and monitoring.The material is made of high-strength aluminum alloy profile, with plastic spraying treatment on the surface, humanized and reasonable design, and the opening and positioning are controlled by opening and closing latch, which is simple and convenient. It can be installed in fixed position, cart, inside and around the vehicle, and can also be used with the special tripod produced by our factory.
| Performance parameters of Manual light lock type telescopic mast | |||
| Model | Lock typeGSD-35 | Lock typeGSD-50 | Lock typeGSD-60 |
| Initial height(m) | 1350mm | 1500mm | 1850mm |
| Lift height(m) | 3500mm | 5000mm | 6000mm |
| Node number | 3 | 4 | |
| Top butt thread | M34*1.5 | M22*1.5 | |
| Minimum pipe diameter（mm） | Ø32 | Ø20 | |
| Maximum Outer Diameter of Pipe（mm） | Ø55 | ||
| Vertical load（KG） | ≤10kg | ||
| Operation mode | Manual | ||
| Product Material | Industrial Special Aluminum Alloy，Surface spray treatment | ||
| Product characteristics | The product has spring and pneumatic double cushion. The locking mode adopts manual spanner. The locking is simple and convenient. | ||
