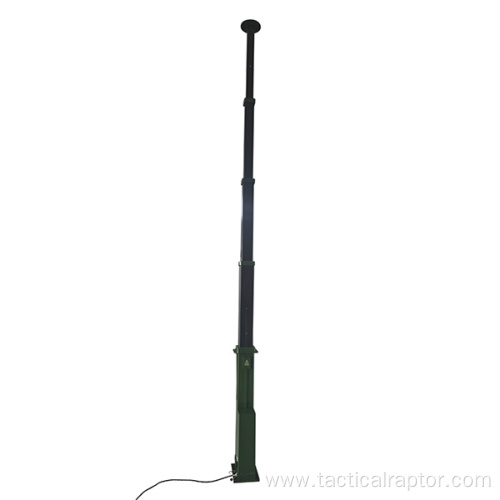

MEE series electric lifting pole is a light-duty electric lifting pole developed by Wenzhou Lucheng Tianhe Automation Component Factory. It is driven by screw and wire rope. It abandons the influence of environment and temperature on pneumatic lifting rod. It works in weather and all weather conditions and can operate lifting rod manually without electricity.
Other features include greater diameter matching, stronger wind resistance and stability. Non-revolving, better directional for the antenna, self-locking at any height. It can be controlled by PC or by remote control.
The products are made of high strength aluminium alloy special for lifting pole. After anodizing treatment, the strength and hardness have reached the international advanced level. Product color can also be

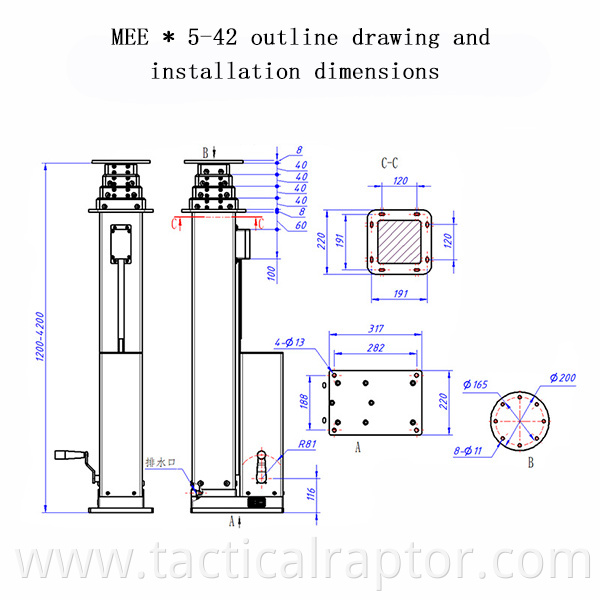

| Performance parameters of MEE *5-42 series electric lifting mast | |
| Model | MEE*5-42 |
| Initial height(m) | 1.2 |
| Lift height（m） | 4.2 |
| Mast self-weight（KG） | ≈62 |
| Node number | 5 |
| Minimum pipe diameter（mm） | □64 |
| Maximum Outer Diameter of Pipe（mm） | □147 |
| Vertical load（KG） | ≤70 |
| Operation mode | Electric/manual |
| Motor power | 300W |
| working voltage | DC48V（Customizable） |
| Product Material | Industrial Special Aluminum Alloy |
