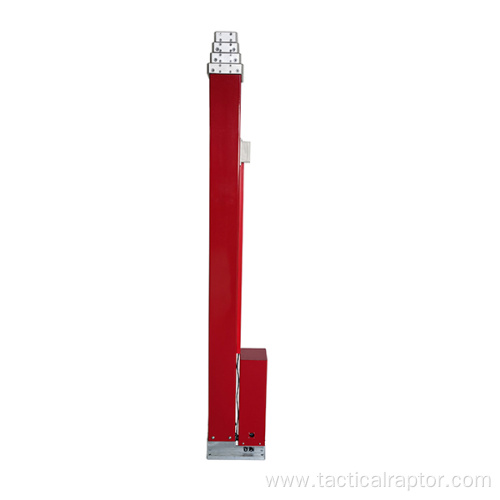

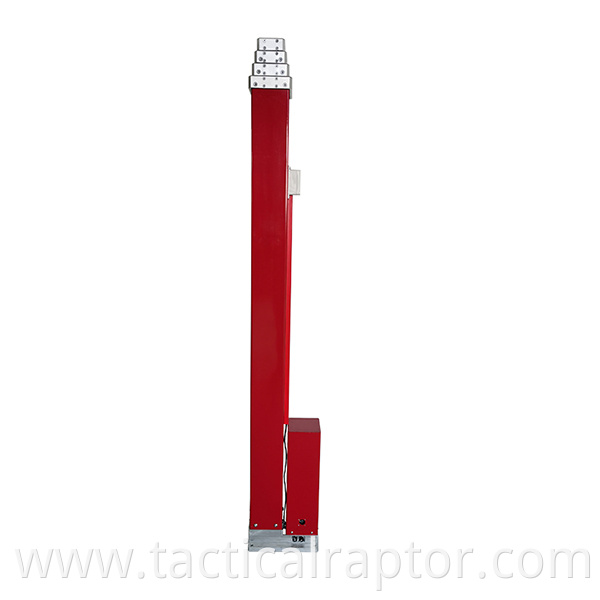

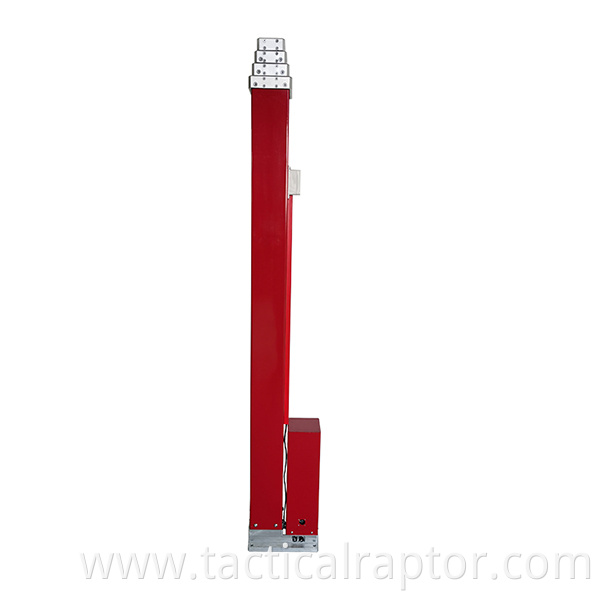

Built with durable high strength aluminum tube sections, the electro mast is designed and tested to meet military environmental standards for operation in extreme conditions.
MEE mast is structurally similar like MEW series mast, it has also been built over 10 years, all parts and components are tested by our clients, generally is a mature product for long life span use. Because it is spindle screw for 1st section, so it goes more smoothly compare to MEW manual mast, and it can be equipped with 12/24Vdc or 220Vac powered, manual back up winch is also available for this model.
| MEE series Telescopic Mast | |||||
| Model No | Extend height (m/ft) | Retract height(m/ft) | No of section | Tube diameter range (mm/in) | Payload capacity(kg/lb) |
| MEE-40*3 | 4m/13.1ft | 1.7m/5.6ft | 3 | 70-136mm | 50kgs/110lbs |
| MEE-60*5 | 6m/19.7ft | 1.75m/5.7ft | 5 | 70-147mm | 50kgs/110lbs |
| MEE-60*6 | 6m/19.7ft | 1.6m/5.2ft | 6 | 70-170mm | 40kgs/88lbs |
| MEE-80*5 | 8m/26.2ft | 2.25m/7.4ft | 5 | 70-147mm | 40kgs/88lbs |
| MEE-80*6 | 8m/26.2ft | 2m/6.6ft | 6 | 70-170mm | 30kgs/66lbs |
| MEE-90*5 | 9m/32.8ft | 2.5m/8.2ft | 5 | 70-147mm | 30kgs/66lbs |
| More heights is available to be designed | |||||
Advantages Key Features:
All mast component made of high tensile aluminum, copper brass, stainless steel screw (no corrosion will happen)
All mast cable is build inside to withstand weather condition
IP67 motor system can be designed
Elevation and stopped at any heights
Structural upgraded with best satisfaction and light weight compare to iron masts(galvanized)
Dual way stainless steel rope kit (it means the mast is going up by rope and going down by rope too)
Screw spindle plus stainless steel rope operation for smooth and better payload capacity
-40 to +80°C friendly motor has been anti-freezing tested
