High Quality Aerial Telescopic Mast
High Quality Aerial Telescopic Mast
High Quality Aerial Telescopic Mast

High Quality Aerial Telescopic Mast

Get Latest Price
Payment Type:L/C,T/T
Incoterm:FOB,CFR,CIF
Transportation:Ocean
Port:wenzhou
Product Attributes

BrandTIANHEMAST

Packaging & Delivery
Selling Units : Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Product Name: Aerial Telescopic Mast
Item: Aerial Mast
Details:

Product Name: 25m Pneumatic Locking Aerial Telescopic Masts

Style: Auto-Locking Collar

Model: GSD-250-FA(3900-25000)

  • Extended Height: 25m
  • Retracted Height: 3.9m
  • Head Loads: 30 kgs
  • Sections: 9 sections ( Base tube 229mm diameter)
  • 3 level , 4 way stainless steel guy rope
  • Mast Weight: 225kgs
  • Wind Resistance: 120km/h un-guyed   200km/h guyed
  • Mast material : Heat-treated harden 6063T6 aluminum, bronze color anodized against corrosion and acid rain

Default Accessories: 1 x Top flange, 1 x  Bottom flange

Optional Accessories:

  • 110v/220v air compressor

Ground Mounting Tripod or Vehicle mouted bracket(Outside)  concrete fixed installation


This product is designed for aerial using purpose ,, could be mounted surveillance camera , meteorology survey system ,  wind turbine , military purpose ,  air plane landing location analysis

We looking cooperate with you and deliver Tianhe outstanding mast solutions tailor to your needs

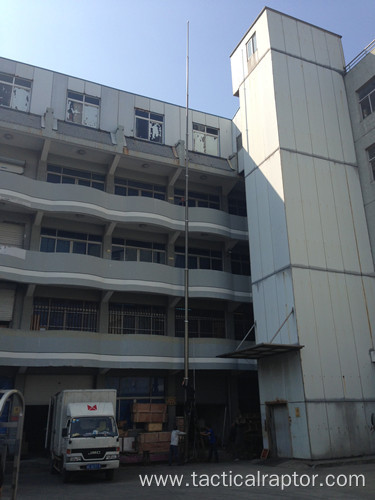

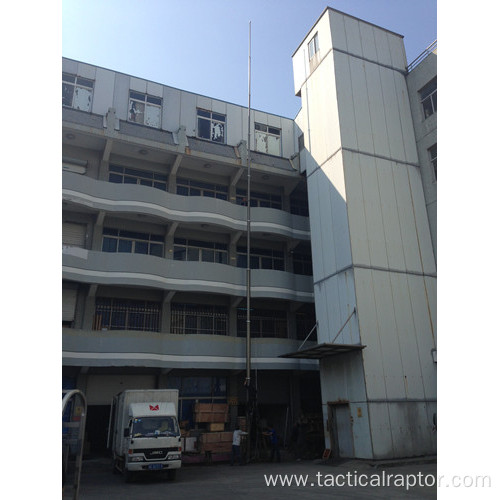

Below is mast deploy videos

Qqqq Jpg

  •
